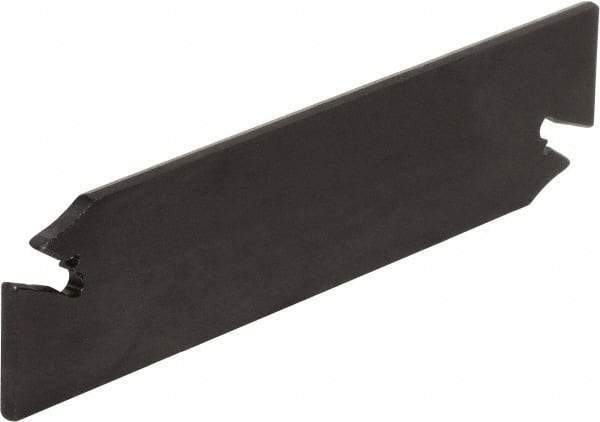

Kyocera - 1.2598" Blade Height, 0.0945" Blade Width, 5.9055" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - KTKB Blade, KTB-SS Series
Item #: 50390970
Brand: Kyocera
Model #: 8806409
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Blade Style | KTKB |
| Insert Style | TKN 1.6; TKN 1.6-P; TKR/L 1.6; TKR/L 1.6-P |
| Insert Width (mm) | 1.60 |
| Insert Width (Decimal Inch) | 0.062992 |
| Series | KTB-SS |
| Tool Block/Toolholder Style | KTKTB |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3780 |
| Maximum Workpiece Diameter (mm) | 35 |
| Cutting Height (mm) | 25.00 |
| Cutting Height (Decimal Inch) | 0.9843 |
| Complete Insert Compatibility | TKN 1.6; TKN 1.6-P; TKR/L 1.6; TKR/L 1.6-P |
| Complete Tool Block/Toolholder Style Compatibility | KTKTB 20-32; KTKTB 25-32; KTKTB 32-32; KTKTBF 25-32; KTKTBF 32-32 |
| Manufacturers Catalog Number | KTKB321SS |
| Insert Type | TKN |
| Type | Cut-Off Blade |
