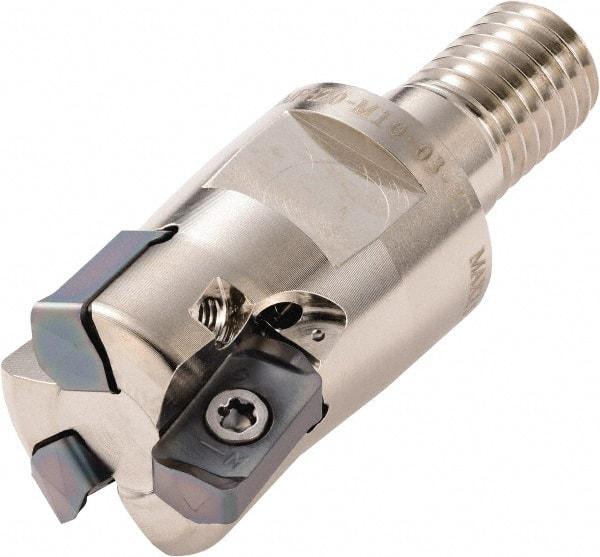

Kyocera - 15.875mm Cut Diam, 0.9906mm Max Depth, M8 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, LOGU 030310ER-GM Insert, MFH Toolholder, Through Coolant
Item #: 50390244
Brand: Kyocera
Model #: 8843923
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 15.8750 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (mm) | 0.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Shank Type | Modular Connection |
| Modular Connection Size | M8 |
| Number of Cutter Inserts | 2 |
| Insert Style | LOGU 030310ER-GM |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Maximum RPM | 18800 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 3.1960 |
| Manufacturers Catalog Number | MFH 0625-M8-03-2T |
