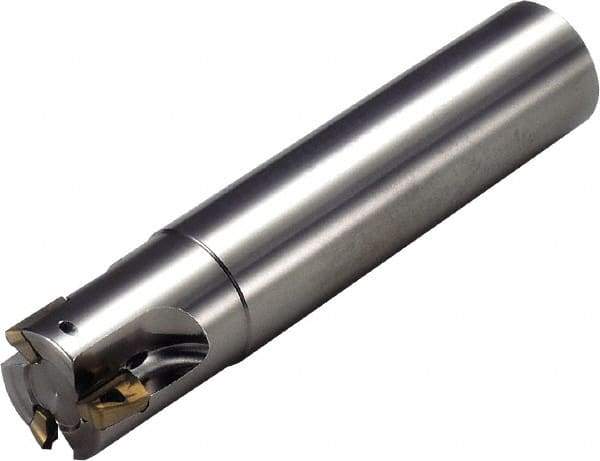

Kyocera - 14mm Cut Diam, 10mm Max Depth of Cut, 16mm Shank Diam, 80mm OAL, Indexable Square Shoulder End Mill - BDMT 1103 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50388750
Brand: Kyocera
Model #: 8812503
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 14.00 |
| Cutting Diameter (Decimal Inch) | 0.5512 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length/Projection (mm) | 80.00 |
| Overall Length/Projection (Decimal Inch) | 3.1496 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.393701 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEC |
| Number of Flutes | 1 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 1103 |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.00 |
| Maximum RPM | 47700 |
