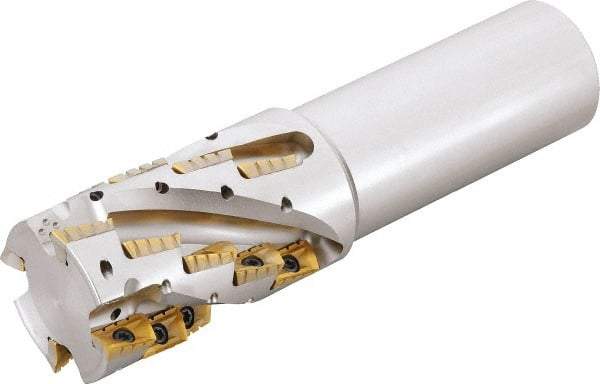

Kyocera - 40mm Cut Diam, 55mm Max Depth of Cut, 42mm Shank Diam, 160mm OAL, Indexable Square Shoulder Helical End Mill - BDMT 11T308ER-N2, BDMT 11T308ER-N3 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50388552
Brand: Kyocera
Model #: 8824532
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 42.00 |
| Shank Diameter (Decimal Inch) | 1.6535 |
| Overall Length/Projection (mm) | 160.00 |
| Overall Length/Projection (Decimal Inch) | 6.2992 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 55.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.165354 |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MECH |
| Number of Flutes | 4 |
| Head Length (mm) | 64.00 |
| Head Length (Decimal Inch) | 2.5197 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 11T308ER-N2; BDMT 11T308ER-N3 |
| Shank Length (Decimal Inch) | 3.7795 |
| Shank Length (mm) | 96.00 |
