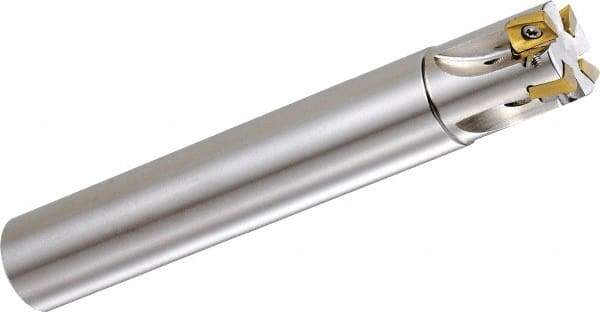

Kyocera - 5/8" Cut Diam, 0.236" Max Depth of Cut, 5/8" Shank Diam, 3-1/2" OAL, Indexable Square Shoulder End Mill - BDMT 0703 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50388461
Brand: Kyocera
Model #: 8821865
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 15.88 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 3.5000 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MECX |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 0.7870 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 0703 |
| Shank Length (Decimal Inch) | 2.7130 |
| Maximum RPM | 43300 |
