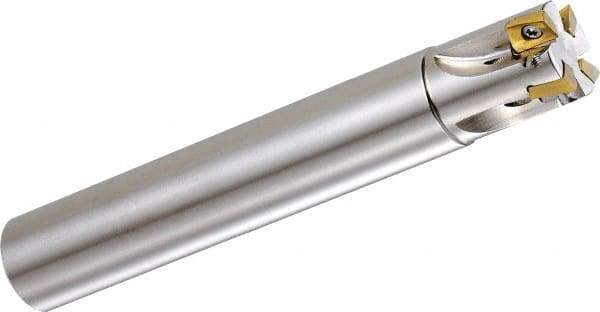

Kyocera - 17mm Cut Diam, 6mm Max Depth of Cut, 16mm Shank Diam, 100mm OAL, Indexable Square Shoulder End Mill - BDMT 0703 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 50388438
Brand: Kyocera
Model #: 8822926
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 17.00 |
| Cutting Diameter (Decimal Inch) | 0.6693 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length/Projection (mm) | 100.00 |
| Overall Length/Projection (Decimal Inch) | 3.9370 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.236220 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MECX |
| Number of Flutes | 3 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Weldon Flat | No |
| Insert Compatibility | BDMT 0703 |
| Shank Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 80.00 |
| Maximum RPM | 42400 |
