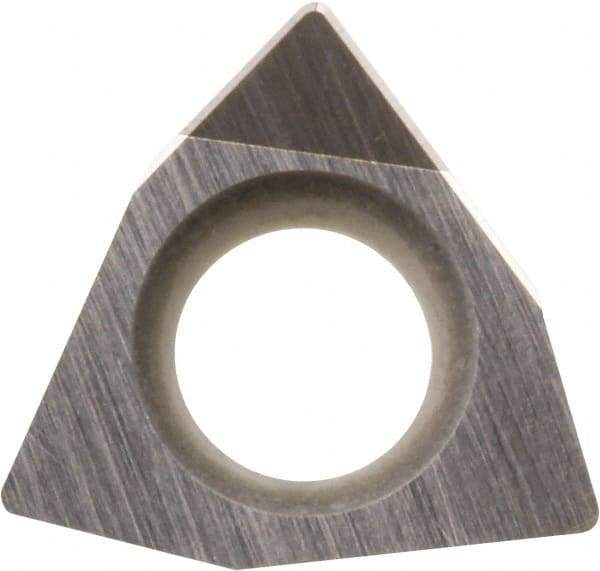

Kyocera - WBGW1.210.5 Grade KBN10M CBN Turning Insert - Megacoat Finish, 80° Trigon, 5/32" Inscr Circle, 1/16" Thick, 0.001" Corner Radius
Item #: 50387042
Brand: Kyocera
Model #: 8826737
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | WBGW |
| Insert Size | 1.210.5 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Corner Radius (Decimal Inch) | 0.0010 |
| Manufacturer's Grade | KBN10M |
| Coating | Megacoat |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | 060102T00815LSE |
| Rake | Positive |
| Relief Angle | 5 |
| Manufacturers Catalog Number | WBGW12105T00315LSE |
| Primary Workpiece Material | H |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Trigon |
