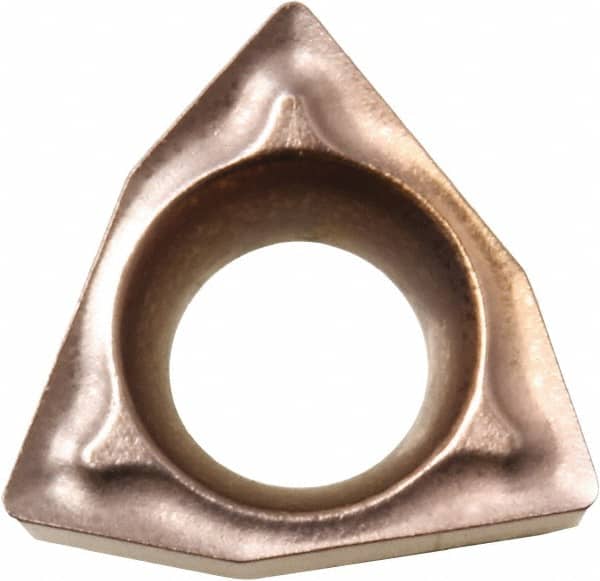

Kyocera - WBMT1.210.5 DP Grade CA525 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 5/32" Inscr Circle, 1/16" Thick, 0.008" Corner Radius
Item #: 50381581
Brand: Kyocera
Model #: 8839844
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WBMT |
| Insert Size | 1.210.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | CA525 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | DP |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | WBMT060102L-DP |
| Rake | Positive |
| Rake Angle | 14 |
| Relief Angle | 5 |
| Coating Process | CVD |
| Manufacturers Catalog Number | WBMT12105LDP CA525 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Trigon |
