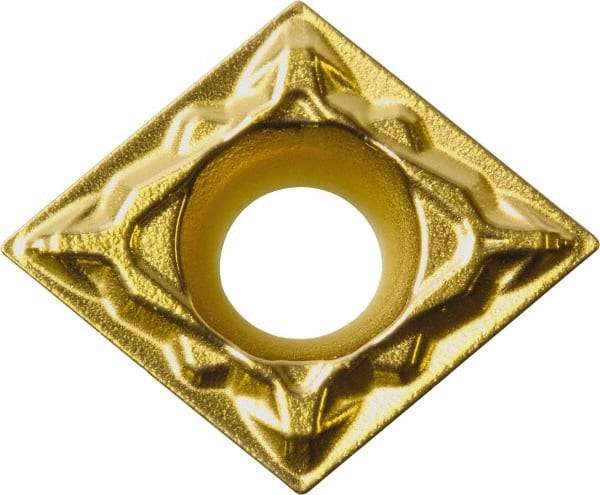

Kyocera - CPMT321 PP Grade TN620 Cermet Turning Insert - Uncoated, 80° Diamond, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 50379163
Brand: Kyocera
Model #: 8842769
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Insert Size | 321 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TN620 |
| Coating | Uncoated |
| Material Grade | Micrograin |
| Chip Breaker | PP |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 11 |
| Manufacturers Catalog Number | CPMT321PP TN620 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
