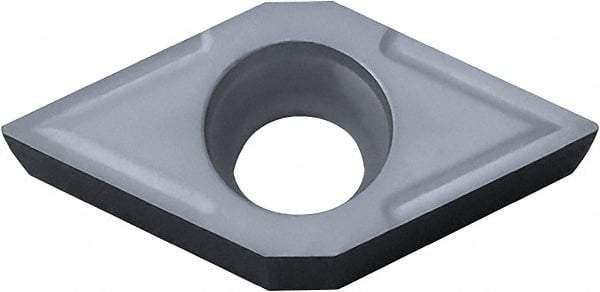

Kyocera - DCGT21.50.5 Grade TN620 Cermet Turning Insert - Uncoated, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 50373794
Brand: Kyocera
Model #: 8843085
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 21.50.5 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | TN620 |
| Coating | Uncoated |
| Material Grade | Micrograin |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | DCGT070202 |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | DCGT21505 TN620 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
