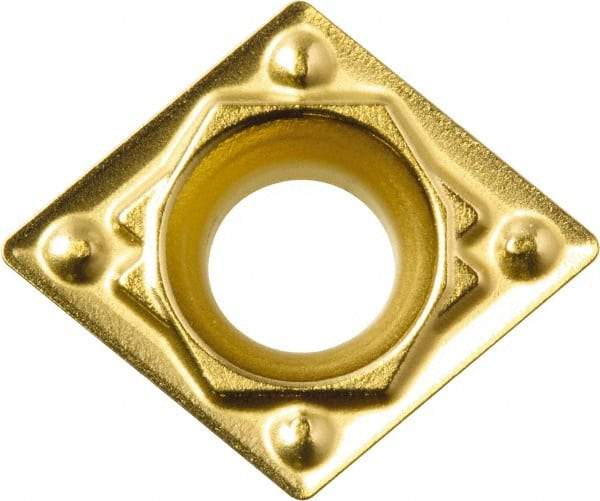

Kyocera - CPMH2.51.51 HQ Grade CA515 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 5/16" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 50368752
Brand: Kyocera
Model #: 8840648
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMH |
| Insert Size | 2.51.51 |
| Material | Carbide |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CA515 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | HQ |
| Hole Diameter (mm) | 3.51 |
| Hole Diameter (Decimal Inch) | 0.1380 |
| ISO Number | CPMH080204HQ |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CPMH25151HQ CA515 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
