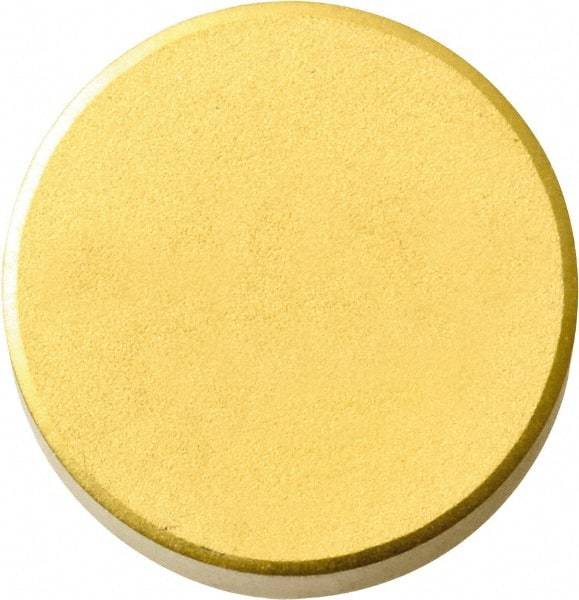

Kyocera - RNM43 Grade KBN900 CBN Turning Insert - TiN Finish, Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 50366558
Brand: Kyocera
Model #: 8804924
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | RNM |
| Insert Size | 43 |
| Material | CBN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | KBN900 |
| Coating | TiN |
| Relief Angle | 0 |
| Manufacturers Catalog Number | RNM43 KBN900 |
| Primary Workpiece Material | K |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
