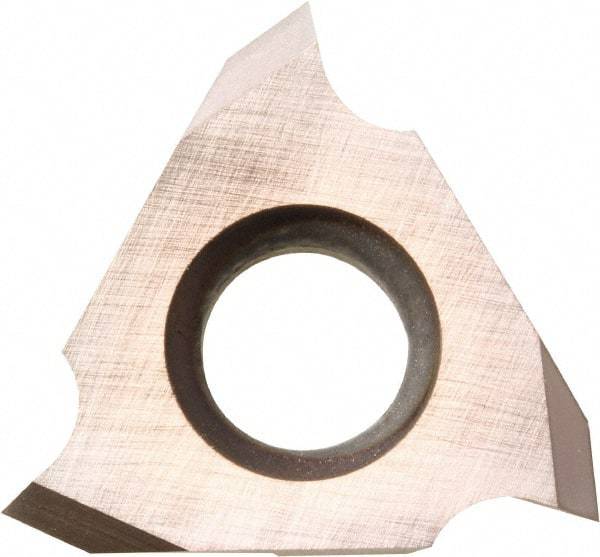

Kyocera - TTX32 Grade KW10, External ISO & UN Threading Insert - 1 to 2mm & 28 to 14 TPI Ext Pitch, Right Hand Insert, Uncoated, Carbide
Item #: 50363589
Brand: Kyocera
Model #: 8815764
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TTX |
| Insert Size | 32 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | ISO; UN |
| Manufacturer's Grade | KW10 |
| External Pitch/TPI | 1-2 mm; 28-14 TPI |
| Coating | Uncoated |
| Material | Carbide |
| ISO Number | TTX32R6001 KW10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Thickness (Decimal Inch) | 0.1250 |
| Series | TTX |
| Included Angle of Threading Tip | 60 |
| Manufacturers Catalog Number | TTX32R6001 |
