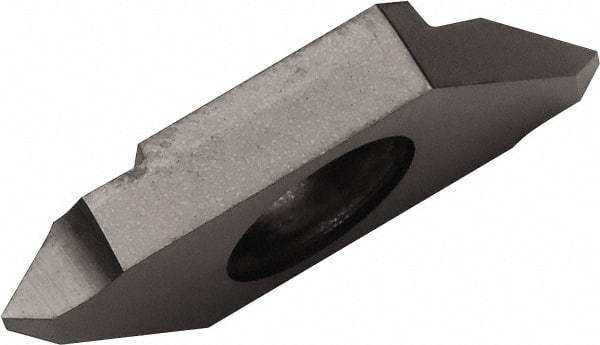

Kyocera - TKFT12 Grade KW10, External ISO, Partial Profile 60° & UN Threading Insert - 1 to 1.5mm & 24 to 18 TPI Ext Pitch, Left Hand Insert, Uncoated, Carbide
Item #: 50363571
Brand: Kyocera
Model #: 8827955
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TKFT |
| Insert Size | 12 |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | ISO; Partial Profile 60 Degrees; UN |
| Manufacturer's Grade | KW10 |
| External Pitch/TPI | 1-1.5 mm; 24-18 TPI |
| Coating | Uncoated |
| Material | Carbide |
| ISO Number | TKFT12LN6001 KW10 |
| Minimum Corner Radius (Decimal Inch) | 0.0039 |
| Maximum Corner Radius (Decimal Inch) | 0.0500 |
| Width of Cutting Tip (mm) | 2.50 |
| Width of Cutting Tip (Decimal Inch) | 0.0984 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Series | TKFT |
| Included Angle of Threading Tip | 60 |
| Tip to Top of Insert (mm) | 8.70 |
| Tip to Top of Insert (Decimal Inch) | 0.3425 |
| Manufacturers Catalog Number | TKFT12LN6001 |
