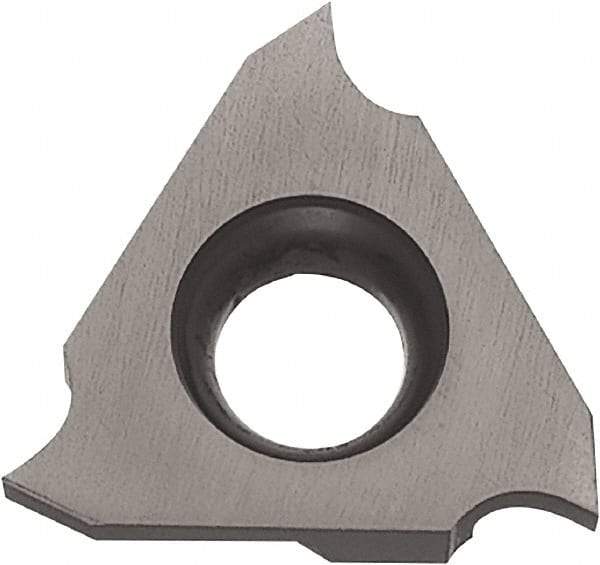

Kyocera - 32TGF Grade KW10, 1.5mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Right Hand, 0.1mm Corner Radius, WC/Co Finish
Item #: 50359413
Brand: Kyocera
Model #: 8830625
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TGF |
| Insert Size | 32 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.003937 |
| Series | TGF |
| Manufacturers Catalog Number | TGF32R150-010 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Insert Thickness (mm) | 3.1800 |
