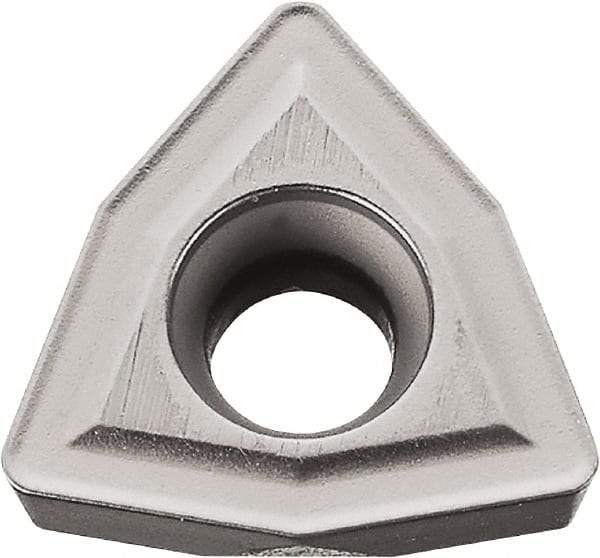

Kyocera - WCMX50308 M1 Grade KW10 Carbide Indexable Drill Insert - WC/Co Finish, Trigon, 5/16" Inscribed Circle
Item #: 50359165
Brand: Kyocera
Model #: 8850464
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 50308 |
| Material | Carbide |
| Manufacturer's Grade | KW10 |
| Inscribed Circle (Inch) | 5/16 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.031250 |
| Shape | Trigon |
| Hole Diameter (Decimal Inch) | 0.1250 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Coating | WC/Co |
| Cutting Direction | Right Hand |
| Chipbreaker | M1 |
