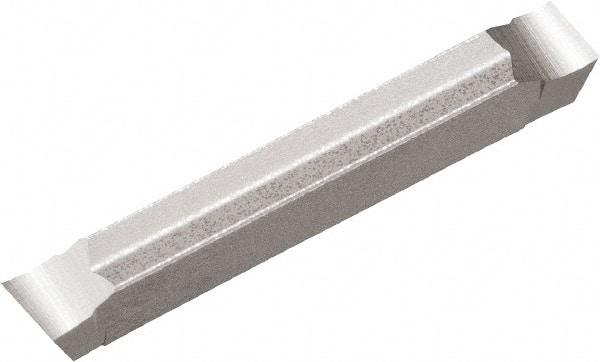

Kyocera - 2520GDG PG Grade GW15, 2.5mm Cutting Width Carbide Grooving Insert - Right Hand, 0.05mm Corner Radius, WC/Co Finish
Item #: 50358191
Brand: Kyocera
Model #: 8838141
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDG |
| Insert Size | 2520 |
| Material | Carbide |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Material Grade | Micrograin |
| Manufacturer's Grade | GW15 |
| Coating | WC/Co |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Lead Angle | 15 |
| Chipbreaker | PG |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.001969 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GD |
| Manufacturers Catalog Number | GDG2520R-005PG-15D |
| Insert Thickness (Decimal Inch) | 0.0827 |
| Insert Thickness (mm) | 2.1000 |
