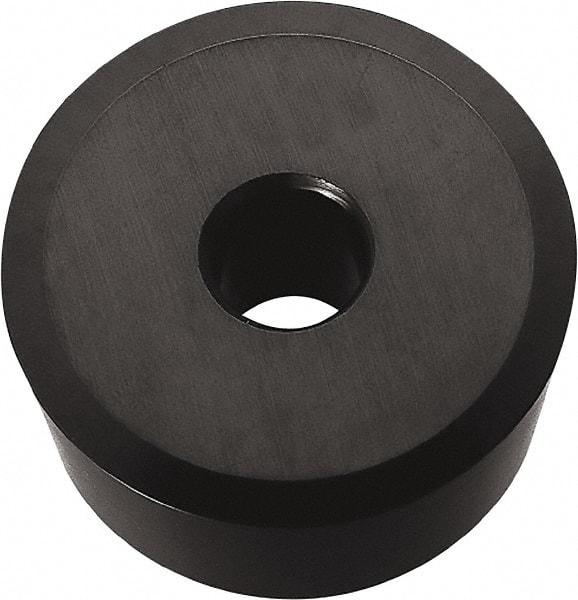

Kyocera - RCMA106 Grade A66N Ceramic Turning Insert - TiN Finish, Round, 1-1/4" Inscr Circle, 3/8" Thick
Item #: 50355403
Brand: Kyocera
Model #: 8849562
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCMA |
| Insert Size | 106 |
| Material | Ceramic |
| Inscribed Circle (mm) | 31.75 |
| Inscribed Circle (Decimal Inch) | 1.2500 |
| Inscribed Circle (Inch) | 1-1/4 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.53 |
| Manufacturer's Grade | A66N |
| Coating | TiN |
| Hole Diameter (Decimal Inch) | 0.3900 |
| Relief Angle | 6 |
| Coating Process | PVD |
| Manufacturers Catalog Number | RCMA106T08015625AA |
| Primary Workpiece Material | H |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
