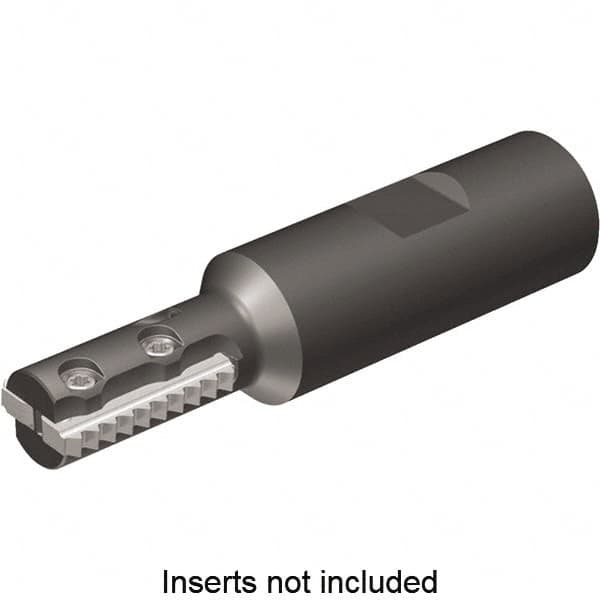

Kennametal - 0.63" Cut Diam, 1.42" Max Depth of Cut, 3/4" Shank Diam, Indexable Thread Mill - Insert Style TM24, 24mm Insert Size, 1 Insert, Toolholder Style TM24, 3.63" OAL
Item #: 50341569
Brand: Kennametal
Model #: 5593157
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6300 |
| Maximum Hole Depth (Decimal Inch) | 1.4200 |
| Insert Style | TM24 |
| Insert Size (mm) | 24.00 |
| Toolholder Style | TM24 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 3.6300 |
| Number of Threading Inserts | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 1 |
| Neck Diameter (mm) | 36.10 |
