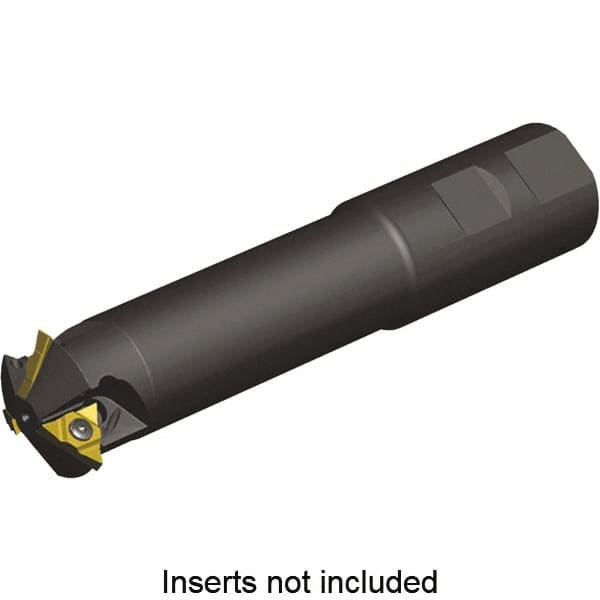

Kennametal - 1.22" Cut Diam, 3.95" Max Depth of Cut, 1-1/4" Shank Diam, Indexable Thread Mill - Insert Style KTM11, 11mm Insert Size, 4 Inserts, Toolholder Style KTMD, 6.37" OAL
Item #: 50341189
Brand: Kennametal
Model #: 5593120
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2200 |
| Maximum Hole Depth (Decimal Inch) | 3.9500 |
| Insert Style | KTM11 |
| Insert Size (mm) | 11.00 |
| Toolholder Style | KTMD |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.3700 |
| Number of Threading Inserts | 4 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Toolholder Material | Steel |
| Insert Holding Method | Screw & Clamp |
| Number of Flutes | 4 |
| Neck Diameter (mm) | 100.30 |
