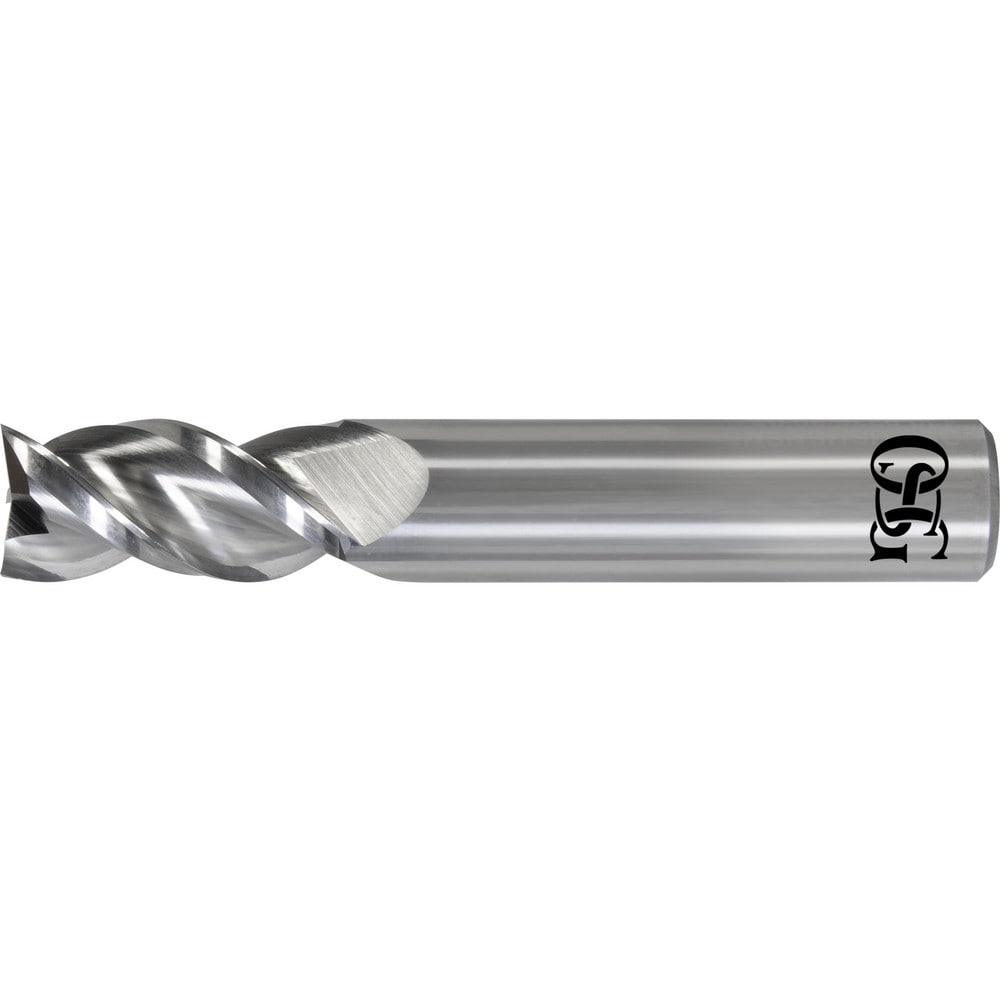

Corner Radius End Mill: 1/4" Dia, 5/8" LOC, 0.0150" Radius, 3 Flute, Solid Carbide
Item #: 48657522
Brand: OSG
Model #: VGM3-0011
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.25 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Inch) | 1/4 |
| Mill Diameter Tolerance | +0/-0.0004 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Aluminum |
| UNSPSC Code | 27112803 |
| Series | VGM3-AL |
| Material Application | Aluminum; Aluminum Casting |
| Manufacturers Catalog Number | VGM3-0011 |
