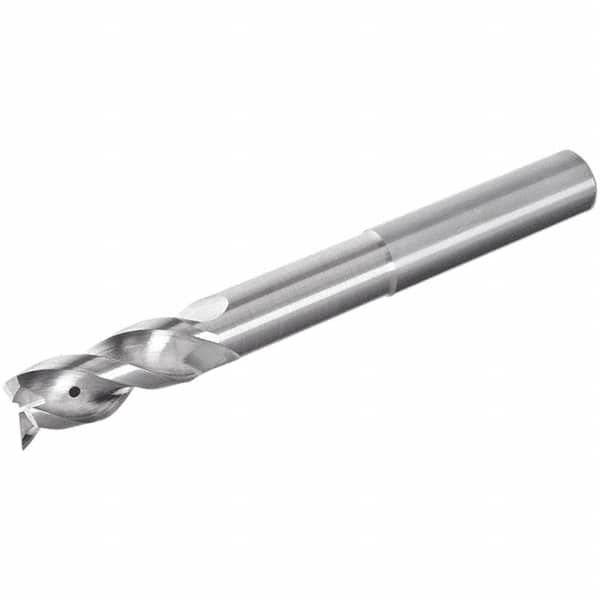

Iscar - 3 Flute Solid Carbide Roughing & Finishing Corner Radius End Mill - Uncoated, Straight Shank, 39° Helix, Non-Centercutting, Regular Length
Item #: 50101666
Brand: Iscar
Model #: 5623174
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are used at reduced speeds for general applications on nonferrous metals.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (mm) | 16.0000 |
| Length of Cut (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 8 |
| Overall Length (mm) | 63 |
| Centercutting | Non-Center Cutting |
| Extended Reach | ExtendedReach |
| Chipbreaker | No |
| Shank Type | Straight Shank |
| Helix Angle | 39 |
| Reach Length (Decimal Inch) | 0.94 |
| Material Grade | Fine Grain |
| Single or Double End | Single |
| Length Type | Regular |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (mm) | h6 |
