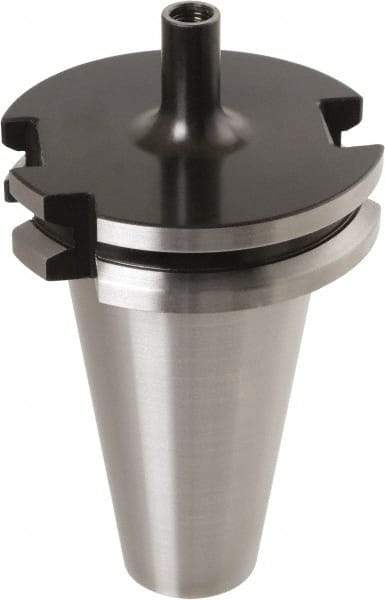

Iscar - Multimaster SK40 Taper Shank Milling Tip Insert Holder & Shank - 40mm Projection, 0.374" Neck Diam, T06 Neck Thread, MM S-A Tool Holder
Item #: 50099688
Brand: Iscar
Model #: 3106912
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Taper Shank |
| Shank Taper Size | SK40 |
| Projection (mm) | 40.00 |
| Projection (Decimal Inch) | 1.5748 |
| Neck Diameter (Decimal Inch) | 0.3740 |
| Neck Thread Size | T06 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Effective Length (mm) | 40.00 |
| Effective Length (Decimal Inch) | 1.5748 |
| Milling Tip Style | HP E90AN-MM-07; MM EA; MM EA-CF; MM EB; MM EBA; MM EC-3; MM EC-4; MM EC-6; MM EC-CF; MM ECD; MM EC-D; MM ECF; MM EC-H-5; MM ECS; MM ECU; MM EDF; MM EFCB; MM EFF; MM EFS; MM EFS-CF; MM ERA; MM ERS; MM ETR; MM FF; MM GRIT-16K/P; MM GRIT-18K/P; MM GRIT-K/P-4 |
| Shank Shape | Taper |
| Toolholder Style | MM S-A |
