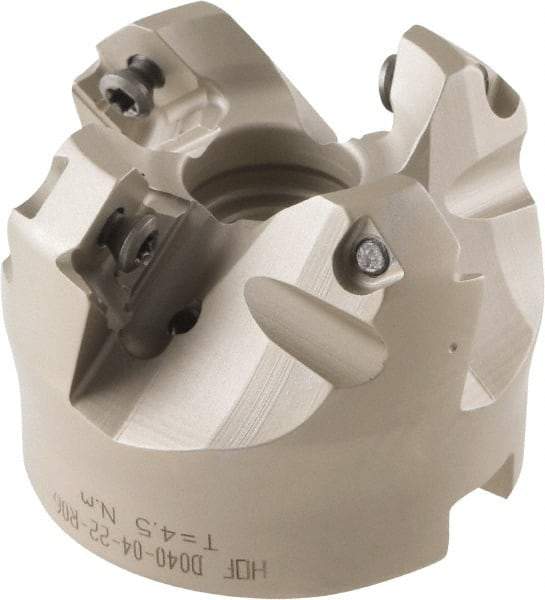

Iscar - 49.4, 50.7, 52.1mm Cut Diam, 22mm Arbor Hole, 8mm Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 4 Inserts, OE.. 060405\xB6OEMW 060405-AETN\xB6REMT 1505-LM-76 Insert, Right Hand Cut, 4 Flutes, Through Coolant, Series Heliocto
Item #: 50099621
Brand: Iscar
Model #: 3106587
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 49.40; 50.70; 52.10 |
| Cutting Diameter (Decimal Inch) | 1.9449; 1.9961; 2.0512 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 42 |
| Overall Height (Decimal Inch) | 1.5748; 1.5945; 1.6221 |
| Overall Height (mm) | 40.00; 40.50; 41.20 |
| Insert Compatibility | OE.. 060405; OEMW 060405-AETN; REMT 1505-LM-76 |
| Series | Heliocto |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | HOF |
| Number of Flutes | 4 |
| Hub Diameter (Decimal Inch) | 1.8898 |
| Hub Diameter (mm) | 48.00 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.3701 |
| Counterbore Diameter (Decimal Inch) | 0.7087 |
| Complete Insert Compatibility | OECR 060405AER; OECR 060405AER-P; OEKT 060405AER; OEMT 060405AER-76; OEMW 060405-AETN; REMT 1505-LM-76; SEMT 140405ATR |
