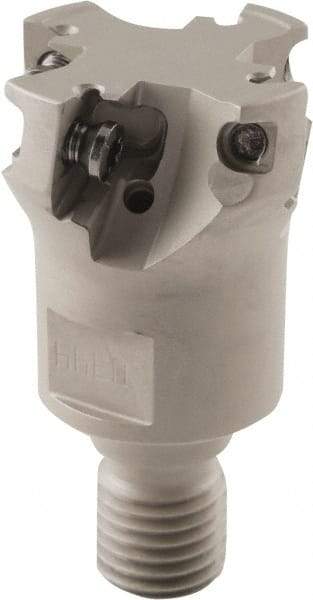

Iscar - 40mm Cut Diam, 13mm Max Depth of Cut, 68mm OAL, Indexable Square Shoulder Helical End Mill - Multiple Insert Styles, M16 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 50099449
Brand: Iscar
Model #: 3106997
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (mm) | 68.00 |
| Overall Length/Projection (Decimal Inch) | 2.6772 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETD-M |
| Number of Flutes | 4 |
| Head Length (mm) | 43.00 |
| Head Length (Decimal Inch) | 1.6929 |
| Insert Compatibility | HM390 TDCT 1505PDR; HM390 TDKT 150516-PDR; HM390 TDKT 150524-PDR; HM390 TDKT 150532-PDR; HM390 TDKT 150540-PDR; HM390 TDKT 1505PDR; HM390 TDKT 1505PDR-FW; HM390 TDKT 1505PDR-GW |
