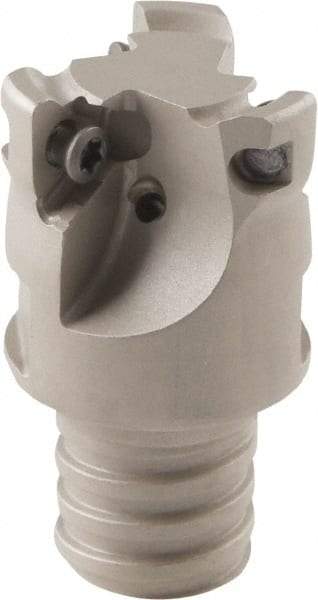

Iscar - 20mm Cut Diam, 5mm Max Depth of Cut, 33.8mm OAL, Indexable Square Shoulder Helical End Mill - HM390 TCKT 0703PCTR Inserts, T12 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 50099431
Brand: Iscar
Model #: 3107026
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Modular Connection |
| Modular Connection Size | T12 |
| Overall Length/Projection (mm) | 33.80 |
| Overall Length/Projection (Decimal Inch) | 1.3307 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETC-MM |
| Number of Flutes | 3 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Insert Compatibility | HM390 TCKT 0703PCTR |
| Toolholder Material | Carbide |
