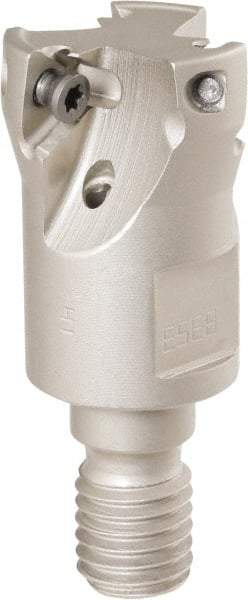

Iscar - 25mm Cut Diam, 8mm Max Depth of Cut, 57mm OAL, Indexable Square Shoulder Helical End Mill - HM390 TPKT 100304PDR, HM390 TPKT 1003PDR Inserts, M12 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 50099415
Brand: Iscar
Model #: 3106995
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Overall Length/Projection (mm) | 57.00 |
| Overall Length/Projection (Decimal Inch) | 2.2441 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETP-M |
| Number of Flutes | 3 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Insert Compatibility | HM390 TPKT 100304PDR; HM390 TPKT 1003PDR |
