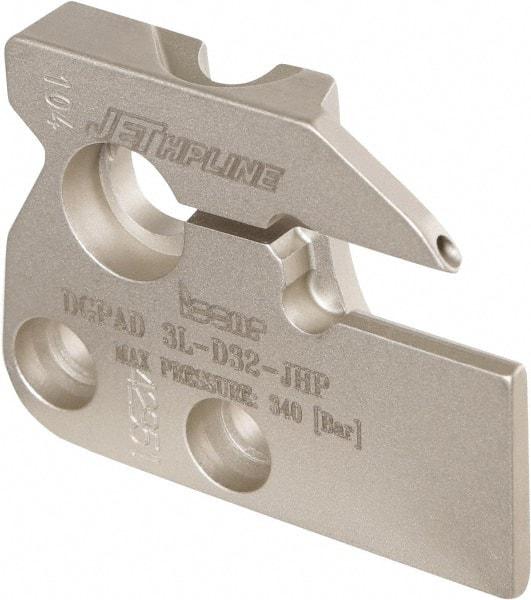

Iscar - 1.2992" Blade Height, 0.2835" Blade Width, 1.7913" OAL, Left Hand Cut, Single End Indexable Cut-Off Blade - DGPAD Blade, Do-Grip, JetHPLine, Modular Grip Series
Item #: 50098607
Brand: Iscar
Model #: 2393783
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Left Hand |
| Blade Height (mm) | 33.00 |
| Blade Height (Decimal Inch) | 1.2992 |
| Blade Width (mm) | 7.20 |
| Blade Width (Decimal Inch) | 0.2835 |
| Blade Overall Length (mm) | 45.50 |
| Blade Overall Length (Decimal Inch) | 1.7913 |
| Blade Style | DGPAD |
| Insert Style | DG.. |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Series | Do-Grip; JetHPLine; Modular Grip |
| Tool Block/Toolholder Style | C#-MAHD-JHP; C#-MAHPD-JHP; MAHPR/L-JHP; MAHR/L-JHP |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2598 |
| Cutting Height (mm) | 24.00 |
| Cutting Height (Decimal Inch) | 0.9449 |
| Minimum Insert Width (mm) | 3.00 |
| Minimum Insert Width (Decimal Inch) | 0.1181 |
| Maximum Insert Width (mm) | 3.18 |
| Maximum Insert Width (Decimal Inch) | 0.1252 |
| Complete Insert Compatibility | DGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630 |
| Complete Tool Block/Toolholder Style Compatibility | C3 MAHD-JHP; C3 MAHPD-JHP; C4 MAHD-JHP; C4 MAHPD-JHP; C5 MAHD-JHP; C5 MAHPD-JHP; C6 MAHD-JHP; C6 MAHPD-JHP; MAHPR 20-JHP; MAHPR 25-JHP; MAHPR 32-JHP; MAHR 20-JHP; MAHR 25-JHP; MAHR 32-JHP |
| Manufacturers Catalog Number | DGPAD 3L-D32-JHP |
