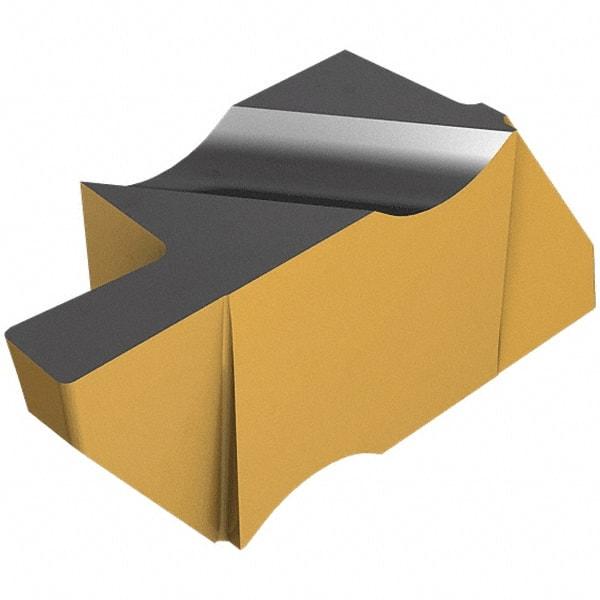

Iscar - 147019RING Grade IC808, 1.47mm Cutting Width Carbide Grooving Insert - 2.39mm Max Depth of Cut, 0.19mm Corner Radius, TiN/TiAlN Finish
Item #: 50097104
Brand: Iscar
Model #: 6405523
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ING |
| Insert Size | 147019R |
| Material | Carbide |
| Cutting Width (mm) | 1.47 |
| Cutting Width (Decimal Inch) | 0.0579 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0941 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Cutting Direction | Right Hand |
| Cutting Height (mm) | 8.65 |
| Cutting Height (Decimal Inch) | 0.3406 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Overall Length (mm) | 22.86 |
| Overall Length (Decimal Inch) | 0.9000 |
| Series | Notch-Grip |
| Manufacturers Catalog Number | ING 1.47-0.19R |
| Overall Width (mm) | 4.95 |
| Overall Width (Decimal Inch) | 0.1949 |
