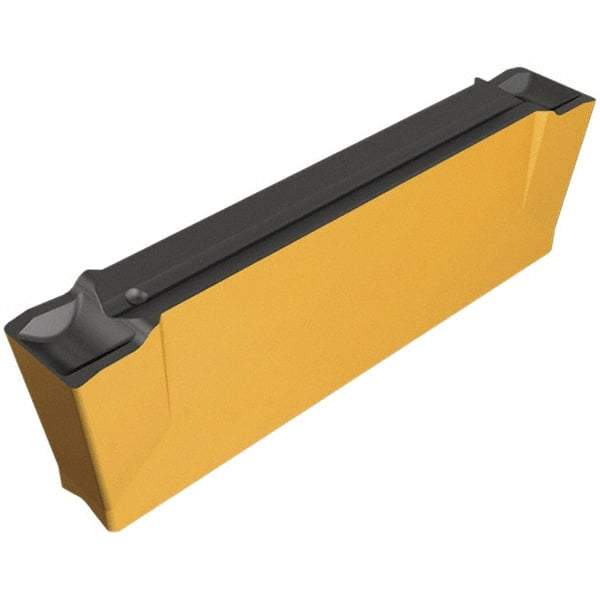

Iscar - DGN3102 MF IC5400 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0079" Cnr Rad, TiN/Al2O3/TiCN Coated, Double End
Item #: 50094523
Brand: Iscar
Model #: 6004902
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 3102 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | IC5400 |
| Coating | TiN/Al2O3/TiCN |
| Series | Do-Grip |
| Chipbreaker | MF |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Full Radius | No |
| Multi-Use Application | Facing; Grooving |
| Coating Process | CVD |
| Overall Length (mm) | 20.10 |
| Overall Length (Decimal Inch) | 0.7913 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | DGN 3102MF |
