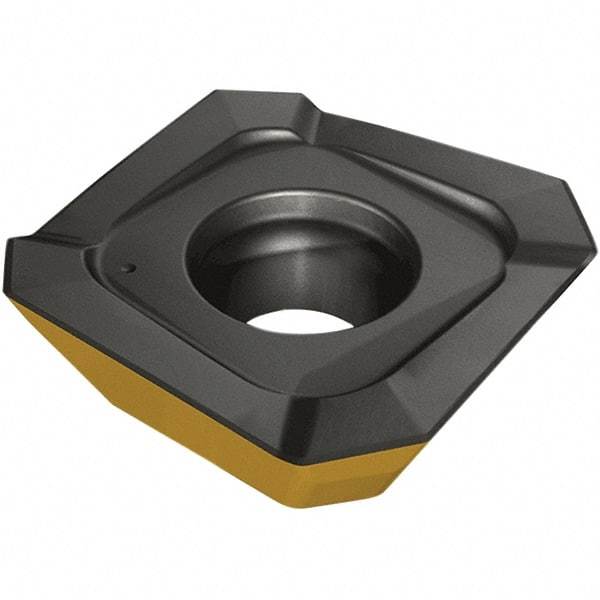

Iscar - SEMT140405 ATR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.195" Thick
Item #: 50094465
Brand: Iscar
Model #: 5607693
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEMT |
| Insert Size | 140405 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (Decimal Inch) | 0.5590 |
| Thickness (Decimal Inch) | 0.1950 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | ATR |
| Maximum Depth of Cut (mm) | 5.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Manufacturers Catalog Number | SEMT 140405ATR |
