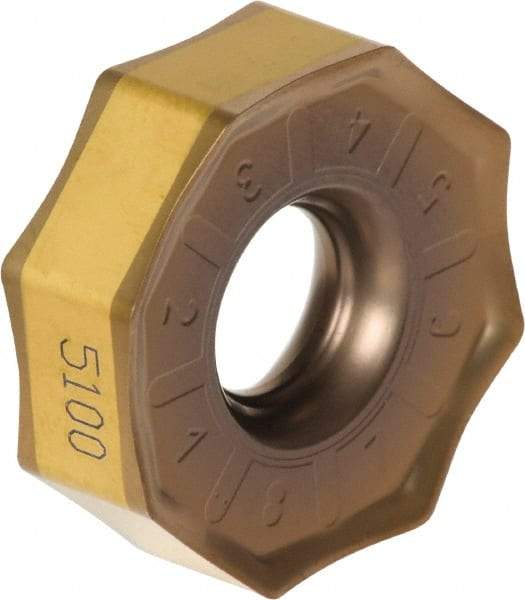

Iscar - ONMU100816 HL Grade IC5100 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.366" Thick, 1.035" Inscribed Circle, 1.6mm Corner Radius
Item #: 50094382
Brand: Iscar
Model #: 5668247
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 100816 |
| Material | Carbide |
| Manufacturer's Grade | IC5100 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (Decimal Inch) | 1.0350 |
| Thickness (Decimal Inch) | 0.3660 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Coating Process | CVD |
| Shape | Octagon |
| Chipbreaker | HL |
| Maximum Depth of Cut (mm) | 7.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Manufacturers Catalog Number | ONMU 100816-N-HL |
