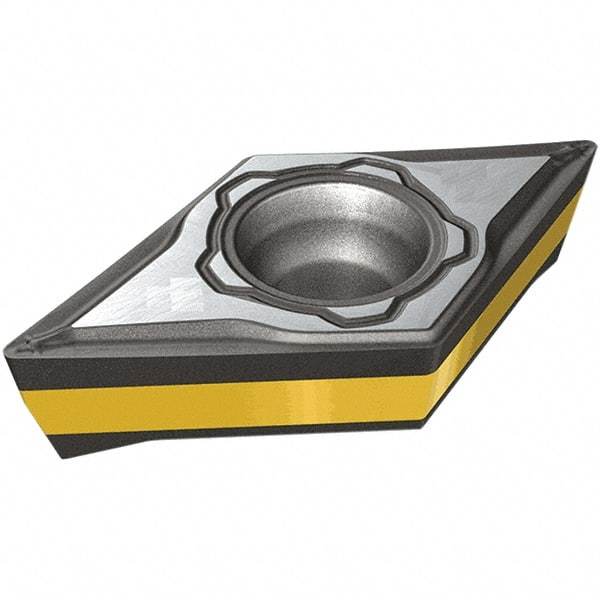

Iscar - DCMT13T508 PF Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 11mm Inscr Circle, 0.2012 Thick, 1/32" Corner Radius
Item #: 50068261
Brand: Iscar
Model #: 5567399
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 13T508 |
| Material | Carbide |
| Length (mm) | 13.40 |
| Length (Decimal Inch) | 0.5276 |
| Inscribed Circle (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness (Decimal Inch) | 0.2012 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | PF |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DCMT 13T508-PF-SL |
| Included Angle | 55 |
| Series | Safe-T-Lock |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| MultiUseTool | No |
| Shape | Diamond |
