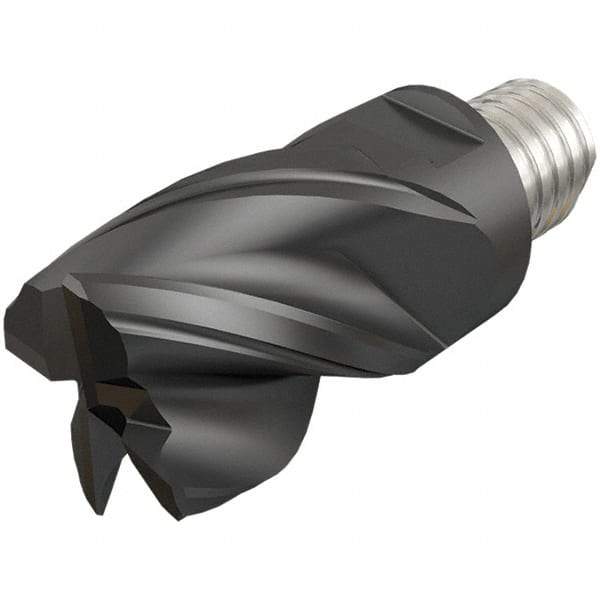

Iscar - MM EC-CF Grade IC908 Carbide End Milling Tip Insert - TiAlN/TiN Finish, 4 Flutes, 25mm Cutting Diam, 22mm Depth of Cut, 37mm Extension, 0.0787" Cnr Rad
Item #: 50067644
Brand: Iscar
Model #: 5623400
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Milling Tip Style | MM EC-CF |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 25 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 22.00 |
| Depth of Cut (Decimal Inch) | 0.8661 |
| Number of Flutes | 4 |
| Coating | TiAlN/TiN |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | PVD |
| Extension From Holder (mm) | 37.00 |
| Extension From Holder (Decimal Inch) | 1.4567 |
| Thread Size | T15 |
