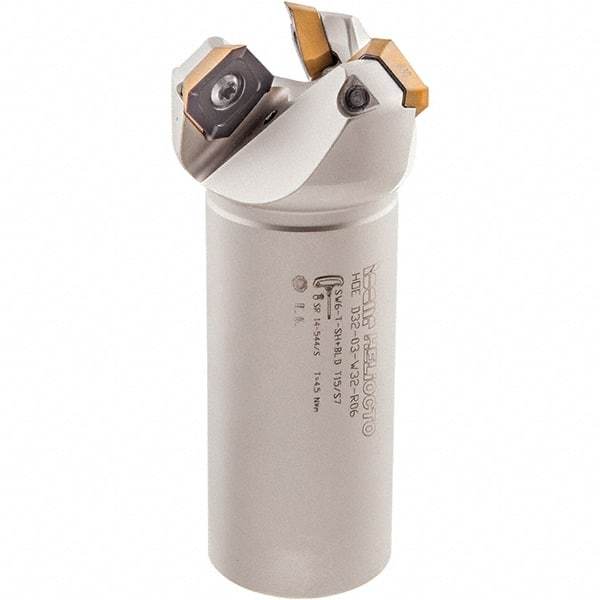

Iscar - 42° Lead Angle, 2.37" Max Cut Diam, 2" Min Cut Diam, 0.1" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, OECR, OEMT, OEMW-AETN, REMT, SEMT Insert Style, 4-1/2" Overall Length, Through Coolant, Weldon Flat
Item #: 50067545
Brand: Iscar
Model #: 3181039
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.3700 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 42 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Style | OECR; OEMT; OEMW-AETN; REMT; SEMT |
| Series | Heliocto |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1000 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Toolholder Style | HOE-R06 |
| Weldon Flat | Yes |
| Complete Insert Compatibility | OECR 060405AER; OECR 060405AER-P; OEKT 060405AER; OEMT 060405AER-76; OEMW 060405-AETN; REMT 1505-LM-76; SEMT 140405ATR |
