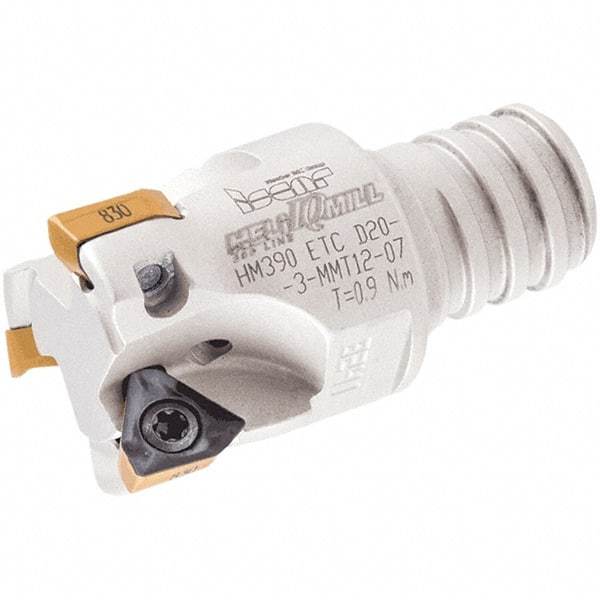

Iscar - 1" Cut Diam, 0.315" Max Depth of Cut, 1.77" OAL, Indexable Square Shoulder Helical End Mill - HM390 TPKT 100304PDR, HM390 TPKT 1003PDR Inserts, T15 Modular Connection, 90° Lead Angle, Series Multimaster
Item #: 50067347
Brand: Iscar
Model #: 3107045
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Modular Connection |
| Modular Connection Size | T15 |
| Overall Length/Projection (Decimal Inch) | 1.7700 |
| Lead Angle | 90 |
| Series | Multimaster |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETP-10 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.1020 |
| Insert Compatibility | HM390 TPKT 100304PDR; HM390 TPKT 1003PDR |
| Toolholder Material | Carbide |
