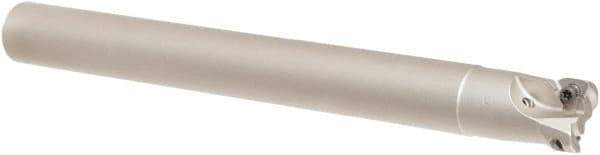

Iscar - 16mm Cut Diam, 5mm Max Depth of Cut, 15mm Shank Diam, 150mm OAL, Indexable Square Shoulder Helical End Mill - HM390 TCKT 0703PCTR Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series HeliIQMill
Item #: 50067305
Brand: Iscar
Model #: 3107032
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 15.00 |
| Shank Diameter (Decimal Inch) | 0.5906 |
| Overall Length/Projection (mm) | 150.00 |
| Overall Length/Projection (Decimal Inch) | 5.9055 |
| Lead Angle | 90 |
| Series | HeliIQMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETC-07 |
| Number of Flutes | 2 |
| Head Length (mm) | 26.00 |
| Head Length (Decimal Inch) | 1.0236 |
| Weldon Flat | No |
| Insert Compatibility | HM390 TCKT 0703PCTR |
| Shank Length (Decimal Inch) | 4.8819 |
| Shank Length (mm) | 124.00 |
