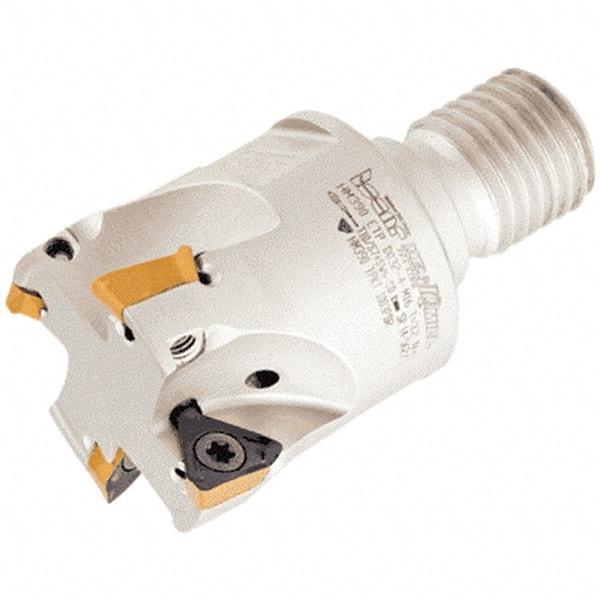

Iscar - 32mm Cut Diam, 8mm Max Depth of Cut, 60mm OAL, Indexable Square Shoulder Helical End Mill - HM390 TPKT 100304PDR, HM390 TPKT 1003PDR Inserts, M16 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 50067271
Brand: Iscar
Model #: 3106996
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (mm) | 60.00 |
| Overall Length/Projection (Decimal Inch) | 2.3622 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETP-M |
| Number of Flutes | 4 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Insert Compatibility | HM390 TPKT 100304PDR; HM390 TPKT 1003PDR |
