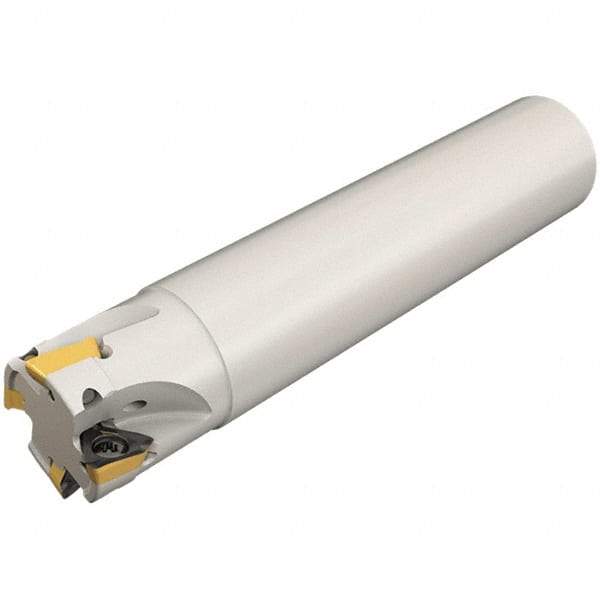

Iscar - 32mm Cut Diam, 8mm Max Depth of Cut, 31mm Shank Diam, 250mm OAL, Indexable Square Shoulder Helical End Mill - HM390 TPKT 100304PDR, HM390 TPKT 1003PDR Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series HeliIQMill
Item #: 50067263
Brand: Iscar
Model #: 3107038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 31.00 |
| Shank Diameter (Decimal Inch) | 1.2205 |
| Overall Length/Projection (mm) | 250.00 |
| Overall Length/Projection (Decimal Inch) | 9.8425 |
| Lead Angle | 90 |
| Series | HeliIQMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETP-10 |
| Number of Flutes | 3 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Weldon Flat | No |
| Insert Compatibility | HM390 TPKT 100304PDR; HM390 TPKT 1003PDR |
| Shank Length (Decimal Inch) | 8.6614 |
| Shank Length (mm) | 220.00 |
