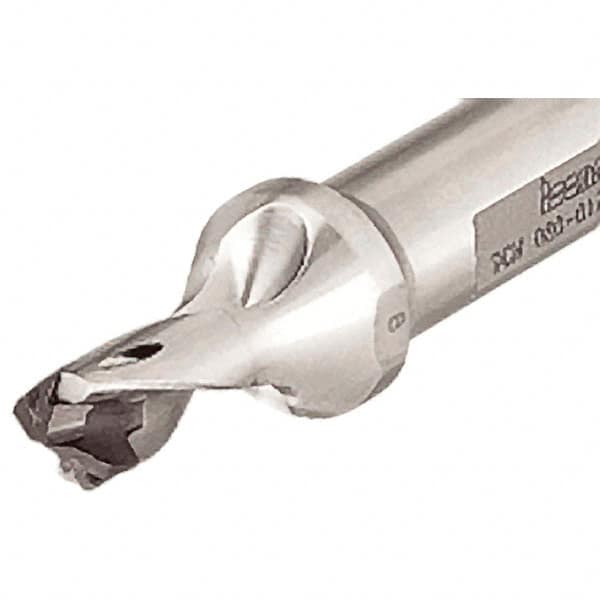

Iscar - 8.5 to 8.9mm Diam, 1.5xD, 13mm Max Drill Depth, 12mm Shank Diam, 73.2mm OAL, Replaceable Tip Drill - 2.8819" OAL, 1.5xD Drill Depth by Diam Ratio
Item #: 50066497
Brand: Iscar
Model #: 3203331
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Minimum Drill Diameter (mm) | 8.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.3346 |
| Maximum Drill Diameter (mm) | 8.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.3504 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.5118 |
| Maximum Drill Depth (mm) | 13.00 |
| Shank Diameter (mm) | 12.00 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 28.20 |
| Body Length (Decimal Inch) | 1.1102 |
| Overall Length (mm) | 73.20 |
| Overall Length (Decimal Inch) | 2.8819 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
