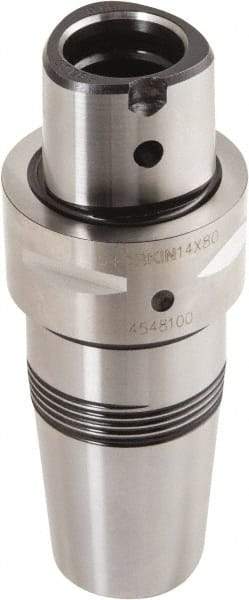

Iscar - 14mm Hole Diam, C4 Modular Connection Shrink Fit Tool Holder & Adapter - 80mm Projection, 27mm Nose Diam, 47mm Clamping Depth, Through Coolant
Item #: 50065424
Brand: Iscar
Model #: 4561494
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Hole Diameter (Decimal Inch) | 0.5512 |
| Hole Diameter (mm) | 14.00 |
| Projection (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1496 |
| Nose Diameter (mm) | 27.00 |
| Nose Diameter (Decimal Inch) | 1.0630 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 47.00 |
| Clamping Depth (Decimal Inch) | 1.8504 |
