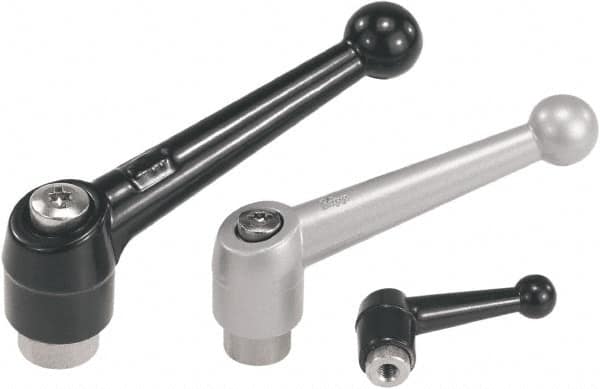

KIPP - 5/16-18, Zinc Threaded Hole Adjustable Clamping Handle - 90mm OAL, 61.5mm High
Item #: 50043199
Brand: KIPP
Model #: K0117.3A33
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Threaded Hole |
| Thread Size | 5/16-18 |
| Overall Length (mm) | 90.00 |
| Handle Material | Zinc |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Powder Coated |
| Components Material | Stainless Steel |
| Handle Type | Adjustable Handle |
| Handle Radius Length (Decimal Inch) | 3.1102 |
| Handle Arm Style | Ball End |
| Body Height (Decimal Inch) | 1.4567 |
| Body Diameter (mm) | 22.00 |
| Base Height (Decimal Inch) | 0.3937 |
| Base Diameter (Decimal Inch) | 0.6299 |
| Handle Arm Angle | 20 Angle |
| Body Height (mm) | 37.00 |
| Body Diameter (Decimal Inch) | 0.8661 |
| Base Height (mm) | 10.00 |
| Base Diameter (mm) | 16.00 |
| Thread Length (Decimal Inch) | 0.5512 |
| Overall Height (mm) | 61.50 |
| Overall Height (Decimal Inch) | 2.4213 |
| Thread Length (mm) | 14.00 |
| Handle Radius Length (mm) | 79.00 |
| Handle Color | Silver |
