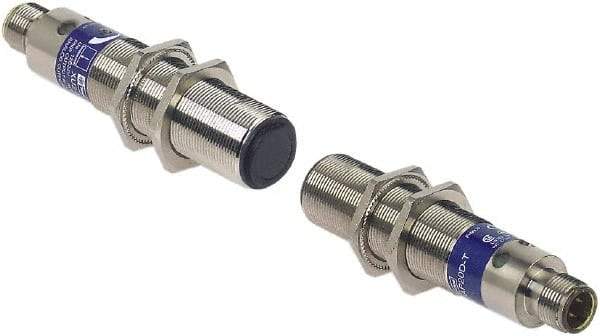

Telemecanique Sensors - 1/2-20 UNF Connector, 15m Nominal Distance, Shock and Vibration Resistant, Through Beam Photoelectric Sensor - 24 to 240 VAC/VDC, 25 Hz, Brass, 95mm Long x 18mm Wide x 7 Inch High
Item #: 49993827
Brand: Telemecanique Sensors
Model #: XU2M18MB230K
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Through-beam |
| Maximum Nominal Sensing Distance (Meters) | 15.00 |
| Connector Type | 1/2-20 UNF |
| Voltage | 24-240 VAC/VDC |
| Frequency Rating (Hz) | 25 |
| Housing Material | Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 95 |
| Overall Width/Diameter (mm) | 18 |
| Overall Height (Decimal Inch) | 7 |
| Shape | Cylindrical |
| Maximum Operating Temperature (F) | 131 |
| Minimum Operating Temperature (F) | -13 |
| For Use With | OsiSense XU |
| Includes | Receiver XU2M18MB230KR; Transmitter XU2M18MC230KT |
| Standards Met | CE; CSA; UL |
