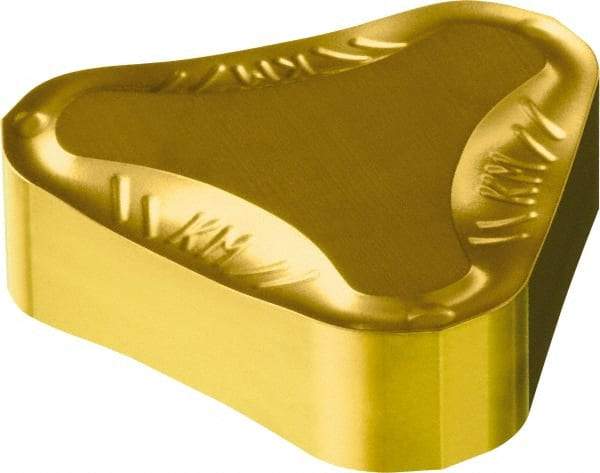

Sandvik Coromant - TNEF1204 KM Grade K20W Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 4.76mm Thick, 12.7mm Inscribed Circle, 2mm Corner Radius
Item #: 49970882
Brand: Sandvik Coromant
Model #: 5753273
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNEF |
| Insert Size | 1204 |
| Material | Carbide |
| Manufacturer's Grade | K20W |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 0.000 |
| Rake Angle | 7 |
| Rake | Positive |
| Coating Process | MTCVD |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Neutral |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Negative Land |
| Manufacturers Catalog Number | 5753273 |
| ISO Number | TNEF 12 04 AN-KM K20W |
