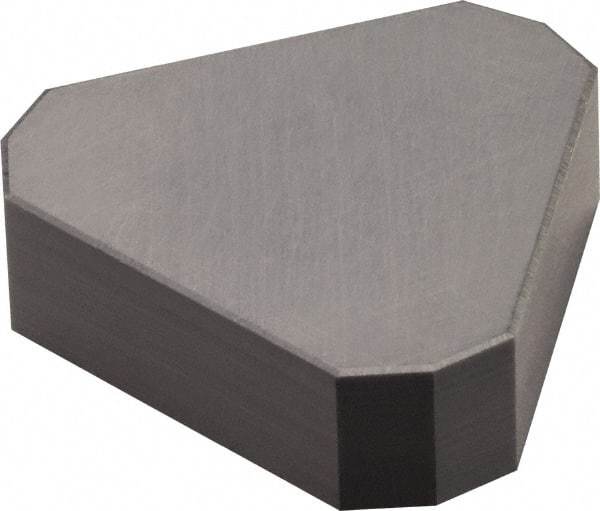

Sandvik Coromant - TNCN1204 AN Grade 6190 Ceramic Milling Insert - Uncoated, 4.75mm Thick, 1/2" Inscribed Circle
Item #: 49970809
Brand: Sandvik Coromant
Model #: 5782752
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | TNCN |
| Insert Size | 1204 |
| Material | Ceramic |
| Manufacturer's Grade | 6190 |
| Coating | Uncoated |
| Length (mm) | 12.00 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.75 |
| Thickness (Decimal Inch) | 0.1870 |
| Coating Process | Uncoated |
| Included Angle | 0 |
| Shape | Triangle |
| Insert Hand | Right Hand |
| Chipbreaker | AN |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | TNCN 12 04 AN 6190 |
