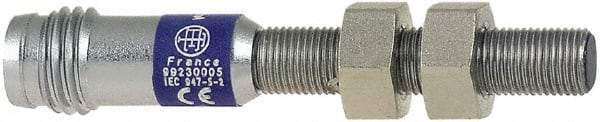

Telemecanique Sensors - NPN, 0.8mm Detection, Cylinder, Inductive Proximity Sensor - 3 Wires, IP67, 5 to 24 VDC, M5x0.5 Thread, 41mm Long
Item #: 49953607
Brand: Telemecanique Sensors
Model #: XS1N05NA311S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | NPN |
| Connector Type | 3-pin M8 Male |
| Number of Wires | 3 |
| Detection Distance (mm) | 0.80 |
| Maximum Voltage | 5-24 VDC |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 100 |
| Response Frequency (Hz) | 5000 |
| Thread Size | M5x0.5 |
| Housing Material | Stainless Steel |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 41 |
| Standards Met | CSA; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL |
