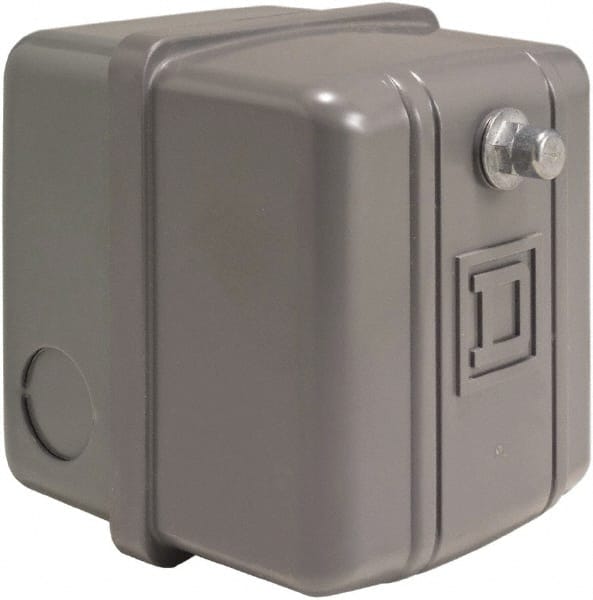

Square D - 1 NEMA Rated, DPST, 40 to 60 psi, Electromechanical, Snap Action Pressure and Level Switch
Item #: 49952674
Brand: Square D
Model #: 9013GSG2J24H
Product Specifications
| Pressure Switch Type | Electromechanical; Snap Action |
| NEMA Rating | 1 |
| Maximum Pressure Setting | 60 psi |
| Minimum Pressure Setting | 40 psi |
| Differential Pressure Type | Adjustable |
| Maximum Differential Pressure (psig) | 30 |
| Minimum Differential Pressure (psig) | 15 |
| Voltage | 460/575 VAC |
| Contact Form | DPST |
| Connector Size (Decimal Inch) | 0.2500 |
| Connector Size (Inch) | 1/4 |
| Terminal Type | Screw |
| For Use With | Electrically Driven Air Compressors; Electrically Driven Water Pumps; Power Circuits |
| Standards Met | ANSI/NSF Standard 61; CSA File No. LR25490 Class 3211 06; FDA 21CFR.2600; NEC Article 430-84; UL 508; UL File No. E12158 CCN NKPZ |
