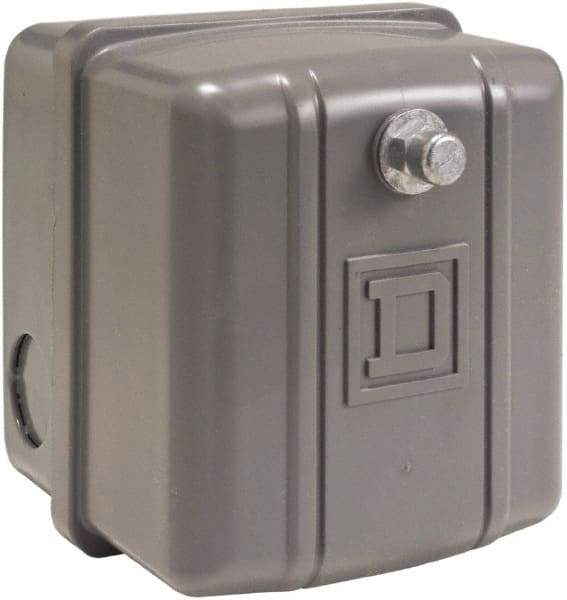

Square D - 1 NEMA Rated, DPST, 125 to 150 psi, Electromechanical, Snap Action Pressure and Level Switch - Adjustable Pressure, 460/575 VAC, 1/4 Inch Connector, Screw Terminal, For Use with Air Compressors, Power Circuits, Water Pumps
Item #: 49917826
Brand: Square D
Model #: 9013GHG5J58X
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pressure Switch Type | Electromechanical; Snap Action |
| NEMA Rating | 1 |
| Maximum Pressure Setting | 150 psi |
| Minimum Pressure Setting | 125 psi |
| Differential Pressure Type | Adjustable |
| Maximum Differential Pressure (psig) | 45 |
| Minimum Differential Pressure (psig) | 25 |
| Voltage | 460/575 VAC |
| Contact Form | DPST |
| Connector Size (Decimal Inch) | 0.2500 |
| Connector Size (Inch) | 1/4 |
| Terminal Type | Screw |
| For Use With | Air Compressors; Power Circuits; Water Pumps |
| Includes | Two Way Pressure Release Valve |
| Standards Met | ANSI/NSF Standard 61; CSA File No. LR25490 Class 3211 06; FDA 21CFR.2600; NEC Article 430-84; UL 508; UL File No. E12158 CCN NKPZ |
