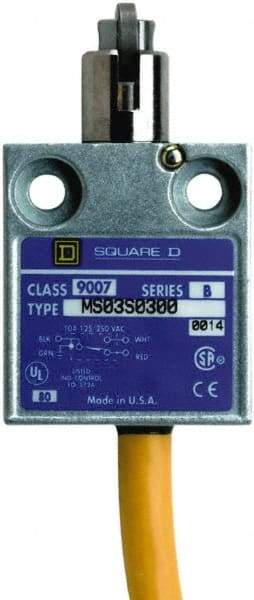

Square D - SPDT, NC/NO, 240 VAC, Prewired Terminal, Roller Plunger Actuator, General Purpose Limit Switch - 1, 2, 4, 6, 6P NEMA Rating, IP67 IPR Rating, 80 Ounce Operating Force
Item #: 49804859
Brand: Square D
Model #: 9007MS03S0200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Roller Plunger |
| Voltage | 240 VAC |
| Contact Form | SPDT |
| Contact Configuration | NC/NO |
| Terminal Type | Prewired |
| Actuator Location | Side |
| Material | Zinc |
| Amperage | 3 @ 240 VAC; 5 @ 28 VDC; 6 @ 120 VAC |
| Actuator Length (Decimal Inch) | 7-1/2 |
| NEMA Rating | 1; 2; 4; 6; 6P |
| Ingress Protection Rating | IP67 |
| Maximum Operating Force (oz.) | 80 |
| Maximum Operating Temperature (F) | 220 |
| Minimum Operating Temperature (F) | -40 |
| Overall Width (Decimal Inch) | 1.5600 |
| Overall Depth (Decimal Inch) | 0.6200 |
| Standards Met | CE; CSA; E78403; IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; LR 25490 Class 32 11 03; RoHS Compliant; UL |
