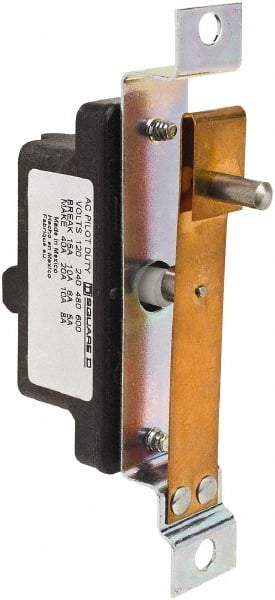

Square D - DPDT, 2NC/2NO, 600 Volt, Screw Terminal, Rod Lever Actuator, General Purpose Limit Switch - 1 NEMA Rating, IP20 IPR Rating, Panel Mount, 1/2 Lb. Operating Force
Item #: 49791148
Brand: Square D
Model #: 9007CC1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rod Lever |
| Voltage | 600 V |
| Contact Form | DPDT |
| Contact Configuration | 2NC/2NO |
| Terminal Type | Screw Terminal |
| Mounting Type | Panel Mount |
| Actuator Location | Side |
| Material | Zinc |
| Amperage | 0.10 @ 250 VDC; 0.20 @ 125 VDC; 0.60 @ 600 VAC; 0.75 @ 480 VAC; 1.50 @ 240 VAC; 3 @ 120 VAC |
| Actuator Length (Decimal Inch) | 9.6000 |
| NEMA Rating | 1 |
| Ingress Protection Rating | IP20 |
| Maximum Operating Force (Lb.) | 1/2 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -20 |
| Overall Width (Decimal Inch) | 0.8300 |
| Overall Depth (Decimal Inch) | 2 |
| Standards Met | IEC 60529; RoHS Compliant |
